3 prong winch remote hookup? Where?

[Hkb82]

Can you change the frequency on those wireless control units? If not I’d probably try and put a power switch on to stop it from operating on others controls. Would be that hard just have to run wires up to the front panel.
I’d think if more then one person was running these in a group with live power it would not be good for those not spooled out once someone winches in everybody is coming in. Let’s hope that your fairlead is a good one as it’s about to get a workout.
I’d definitely be running it through a power switch if I were to put one on.



[Keep]

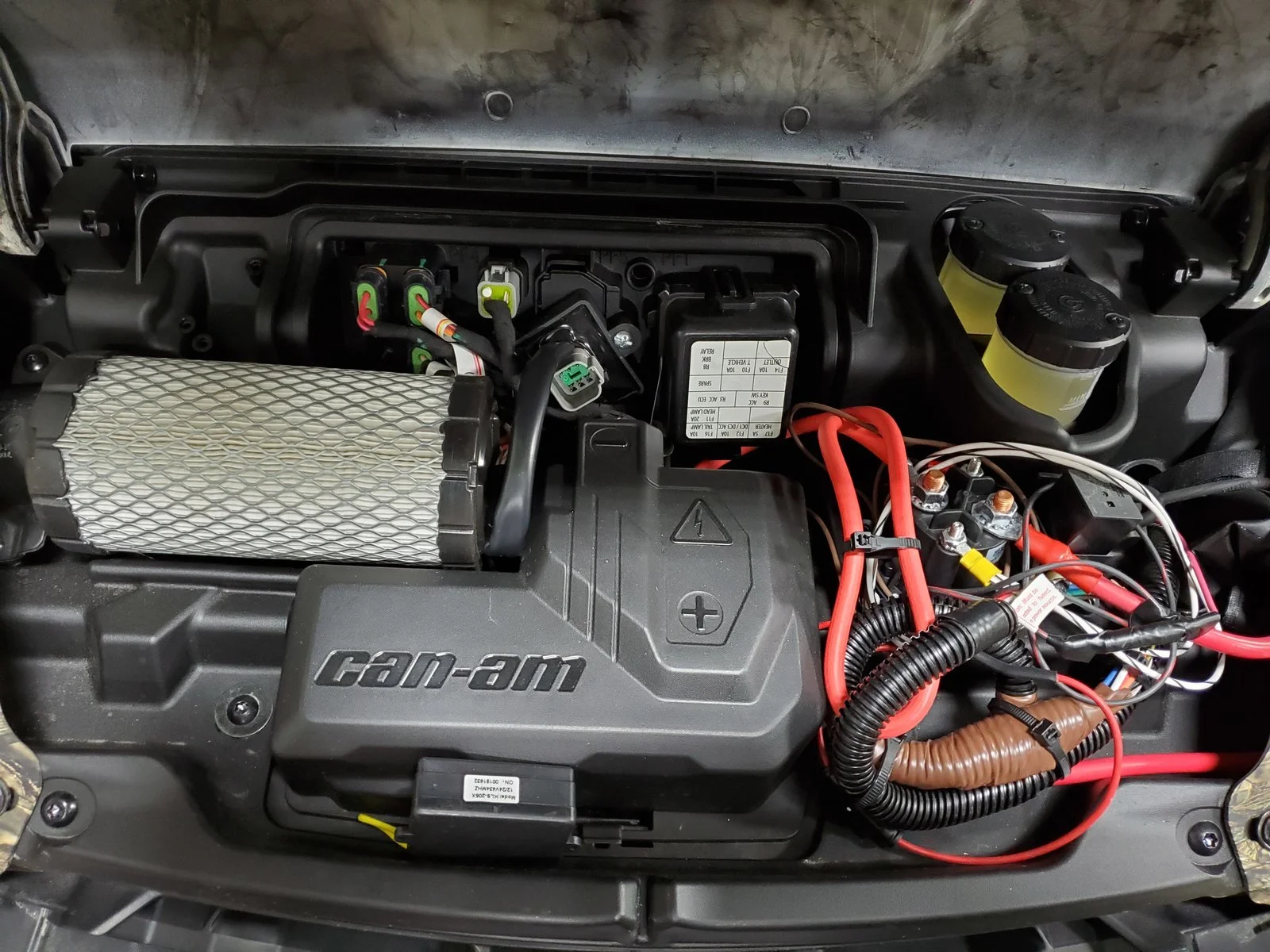

Here are some pictures. I have a fair amount of stuff going on in there with the track module and my Boss V plow relay and power  hookups.

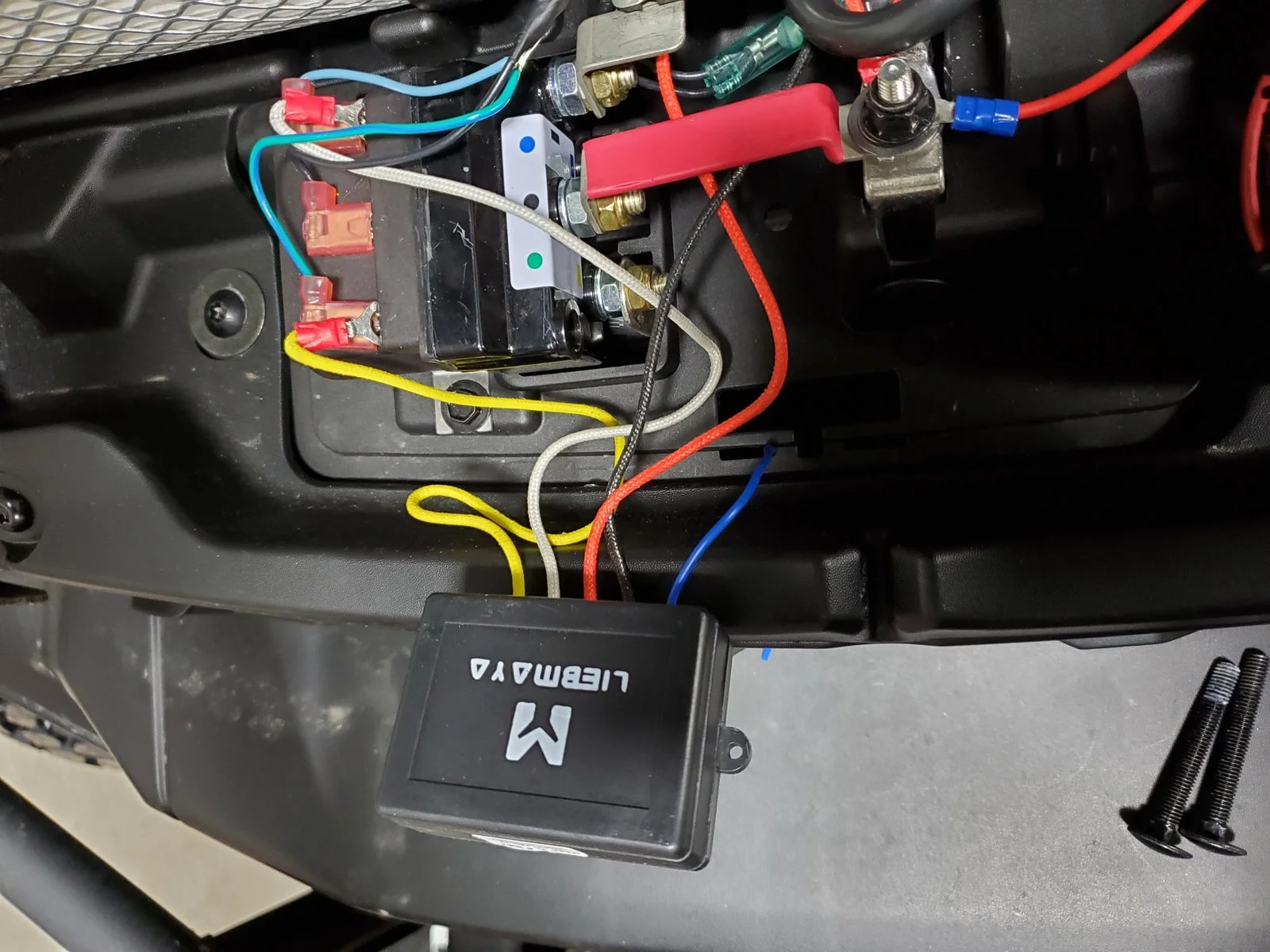

Run the the black and red wires to the + and -

Run the (2) other colors to the locations shown, if the winch reels in backwards flip flop those (2) wires around and it will correct itself

Goodluck!

View attachment 619

View attachment 622

Snowtower2, thanks for these pics and link. I hooked mine up in about 10 minutes. Do delay, works perfectly.



[eelliott]

Attached are my instructions for installing the wired remote (Can-Am [SIZE=11pt]715006504).[/SIZE]

How to install the Can-Am Wired Remote (Winch) Control on a Defender Limited - 03.pdf



[Chuck123]

eelliott,

Thanks so much for posting the installation guide. I have a 2023 model and picked up a corded remote from the dealer and couldn't figure out how to install it based on the instructions available from BRP online. Your instructions helped me to realize that I have the wrong harness (I didn't want to cut the wires and add my own fittings) so I went back to the dealer today to exchange it for 715006504.

Cheers!
