Viper MA11229 Wireless Remote Winch Switch Install

[joejamison]

Just got a 2021 XT HD8 and I'm working on outfitting it for farm work. I figured a remote control for the HD 4500 winch would be the best way of safely using the winch, so I got one of these MA11229 winch remote switches. It came in today - no installation instructions in the box. I've contacted the seller and Moto Alliance for help, and the installation instructions on MA's website are rather vague, basically "Every ATV/UTV is different, figure out where to connect the unit and make sure the wires are neat". Not helpful at all.

I figure I'll check with the forum folks in case anyone has already cracked this nut. I've searched the forum and now I wish I'd bought one of those $20 units that AH2R and others discussed. Has anyone successfully installed this unit?



[joejamison]

So, after sleeping on it and doing a little more Googling, I figured out the wiring for the Viper remote. Under the Can-Am's hood is the winch relay, with 3 wires on the low voltage side:

1. Green, which reels the cable in when voltage is applied.

2. Black, which is the ground.

3. Light blue, which reels the cable out when voltage is applied.

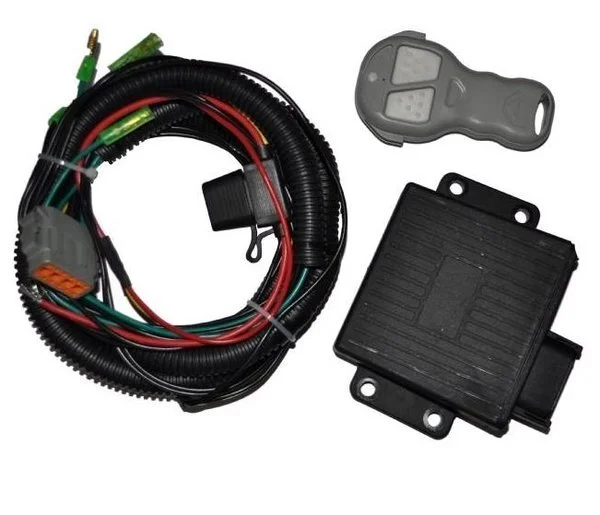

On the Viper's wire harness, there are the following cables:

1. Black with a ring terminal - system ground.

2. Red and yellow wires soldered to an inline fuse - system positive.

3. Black with 2 bullet connectors - cable in voltage when "IN" button is pressed.

4. Green with 2 bullet connectors - cable out voltage when "OUT" button is pressed.

To turn on the system, press both IN and OUT buttons for 3-5 seconds.

I wired up the system's power leads to the terminals under the Can-Am's hood. On reflection, I probably should have wired them to the switched terminals under the dash instead. That way, the system would lose power when I turned off the key. As it is, I have to manually shut it off by pressing the button on the main unit. It's supposed to automatically turn itself off, but I haven't witnessed that yet.

I wired the system's IN and OUT wires to the appropriate relay wires using in-line taps. (System black to relay green and system green to relay blue).

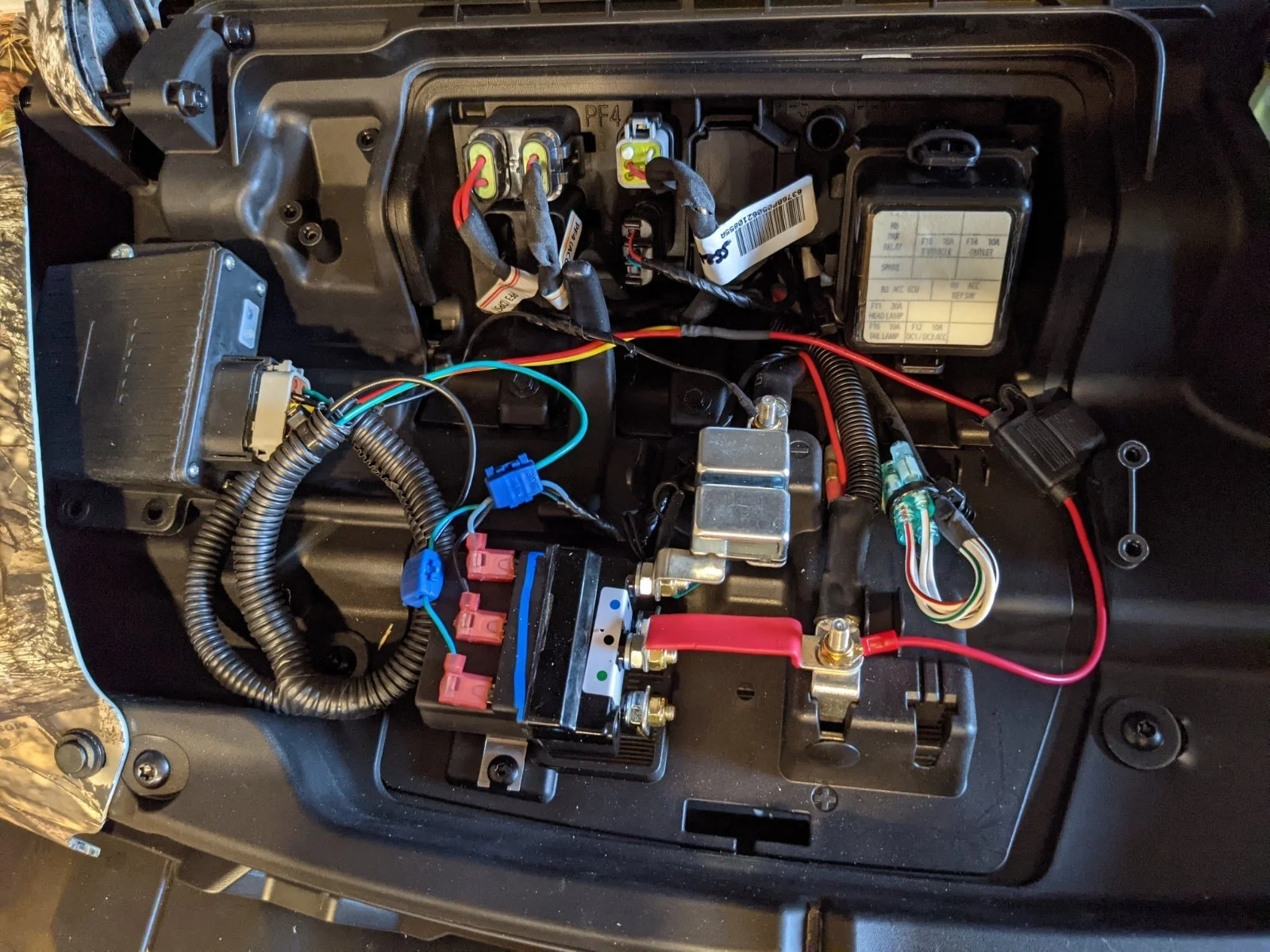

Once I was sure it would work, I shortened the cables and screwed the unit to a convenient mount point. See picture.

Thanks to those who went before and pointed the way!

Happy Trails,

Joe



[Andystoy19]

Good write up, thanks.



[A hunt 2 remember]

Looks Great!! Just goes to show, more that one way to skin a cat!! Glad you got it covered
