Defender limit safety switch for snow plow

[ADM]

Directions are terrible for the limit safety switch for a 2021 defender limited snow plow anyone have any pictures on how it is hooked up.  Thanks



[JRI]

I have an HD10 and I tried for hours to figure out their instructions for the limit switch. None of the pictures matched up after I removed all of the inside paneling. What a pain in the a** for nothing. The limit switch is still sitting on my work bench.



[Steelslinger]

Are you using the online install instructions?

This one looks to be the Defender one:

https://instructions.brp.com/content/instruction-sheet/en_CA/e-instruction-details.html#googtrans(en)&articleNo=kA00c000000yHMYCA2&lang=en&title=SSV KIT - DEFENDER OUTSIDE EUROPE TRAXTER EUROPE ONLYPLOW LIMIT SWITCH&rel_part_number=715006259



[JRI]

Yes, those were the instructions I was using. The other instructions for the blade, mount and actuator were all straight forward but the limit switch instructions do not match up to the HD10 Limited.



[Steelslinger]

What part is holding you up? Or rather, what doesn't match up?

I haven't tackled this yet and I don't have a Limited, just 19' Max Cab XT, but I'll offer what help I can



[JRI]

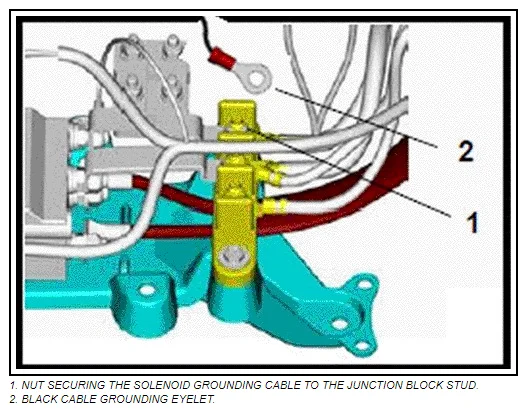

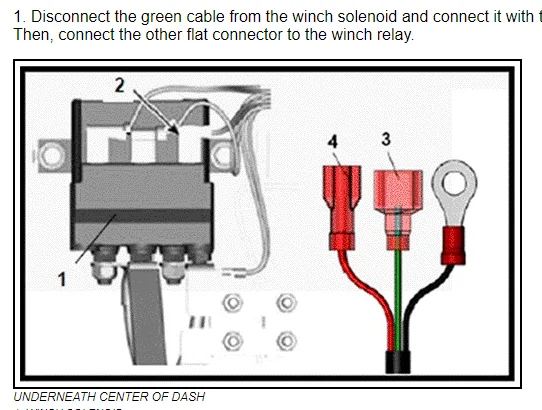

I cannot locate the winch solenoid. It says "underneath center dash" but when I removed all the interior panels I could not locate it...



[Steelslinger]

Can you follow the wires from the switch or the winch back to the solenoid? Not many places it could be in these things.



[Steelslinger]

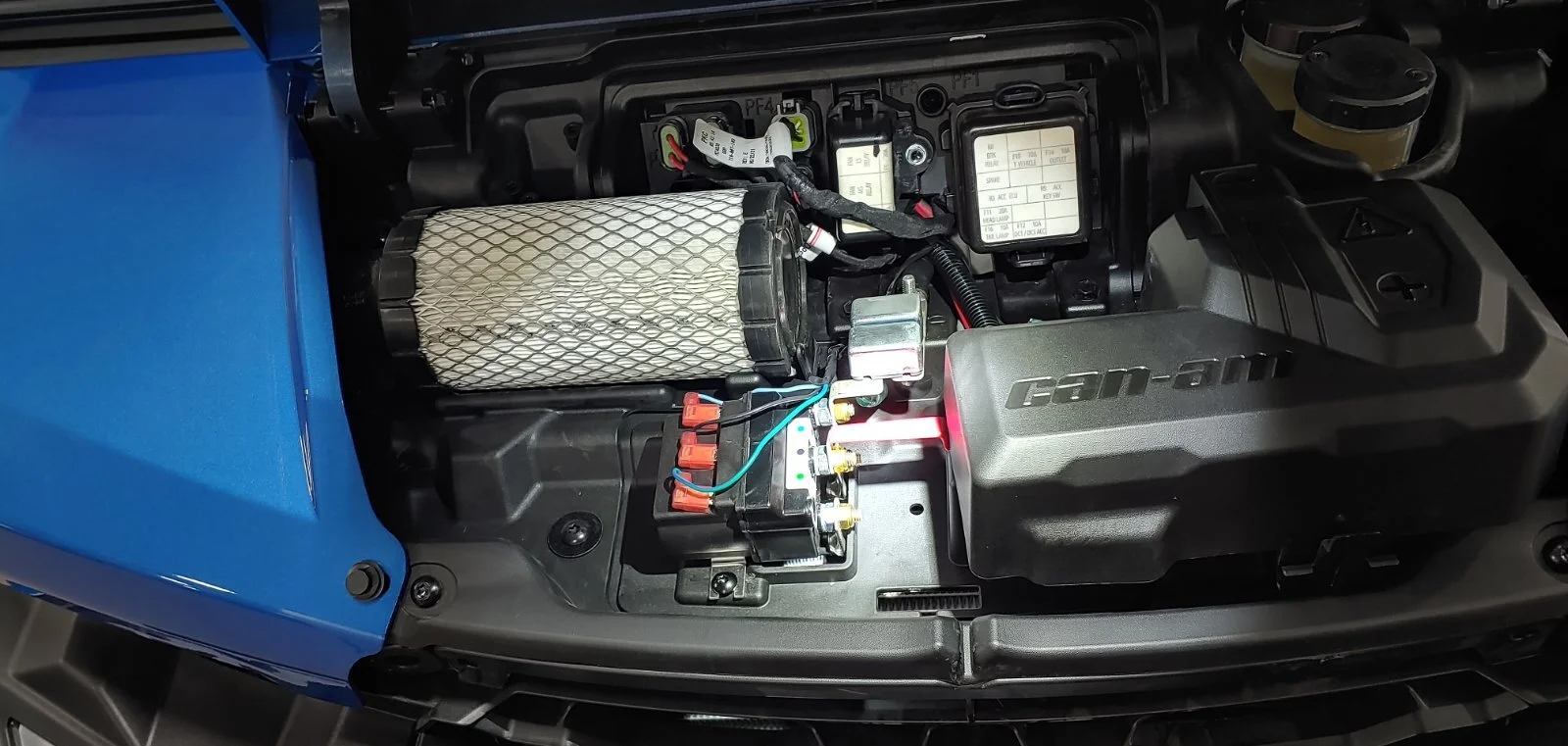

I was able to look over a 2021 limited at my local dealers. The solenoid is under the hood and under the black cover at the front.
